FIND THE BEST FIT FOR YOUR LARGE ROOM
In large rooms with one or two displays, deploy Rally with tremendous flexibility and ease.
SIMPLE TO USE
Start your meeting with just one touch, seamlessly connecting Rally to your preconfigured room solution.
LOOKS BRILLIANT
Upgrade your large room meeting experience with cinema-quality video, outstanding color, and exceptional optical accuracy.
STAYS FOCUSED
Using AI, human figure detection, and automated PTZ, Rally adapts to meeting dynamics and keeps the camera on the action.
SOUNDS AWESOME
Rally’s ultra-low distortion speakers deliver crystal clear, room-filling sound and make sure every voice is clearly heard.
PICKS UP VOICES AT EVERY SEAT
Rally’s exquisitely sensitive mic pods ensure that everyone in the meeting is clearly heard.
SEE EVERYONE, PERFECTLY FRAMED
Logitech RightSight™ camera control automatically moves and adjusts the lens to comfortably frame meeting participants in rooms of all shapes and sizes.
LET THE SUNSHINE IN
Even in meeting rooms with bright windows, Logitech RightLight™ technology with Wide Dynamic Range (WDR) prioritizes faces and human figures over objects and surfaces. The result is a balanced image that renders participants in flattering light with reduced glare and softer shadows, even in dim or backlit conditions.
ADAPTIVE PAN, TILT AND ZOOM
Pan and tilt speeds automatically adapt to the level of zoom. The result: faster camera movement when zoomed out for quick framing and slower camera movement when zoomed in for more control.
FRONT OF ROOM AUDIO
Unlike tabletop speakerphones that decouple voices from video, Rally speakers are designed for placement at the front of the room. By aligning speakers with the display, a person’s voice and video both come from the same place — and never from behind you — so conversations feel more natural and lifelike.
OPTIONAL MOUNTING KIT
Add Rally Mounting Kit for a streamlined installation of each component. Strong wall mounts allow ideal placement for the camera and two speakers, while ventilated mounting plates attach the display and table hubs on a wall or beneath a table. Two cleverly-designed retainers keep cables secure.
LOUD AND CLEAR
The Rally display hub powers up to two speakers, providing rich sound even in larger rooms. A patented suspension system virtually eliminates vibrations that travel through walls, stands, and tables. This improves echo cancellation while keeping video shake-free, even at high volume levels and when zoomed in.

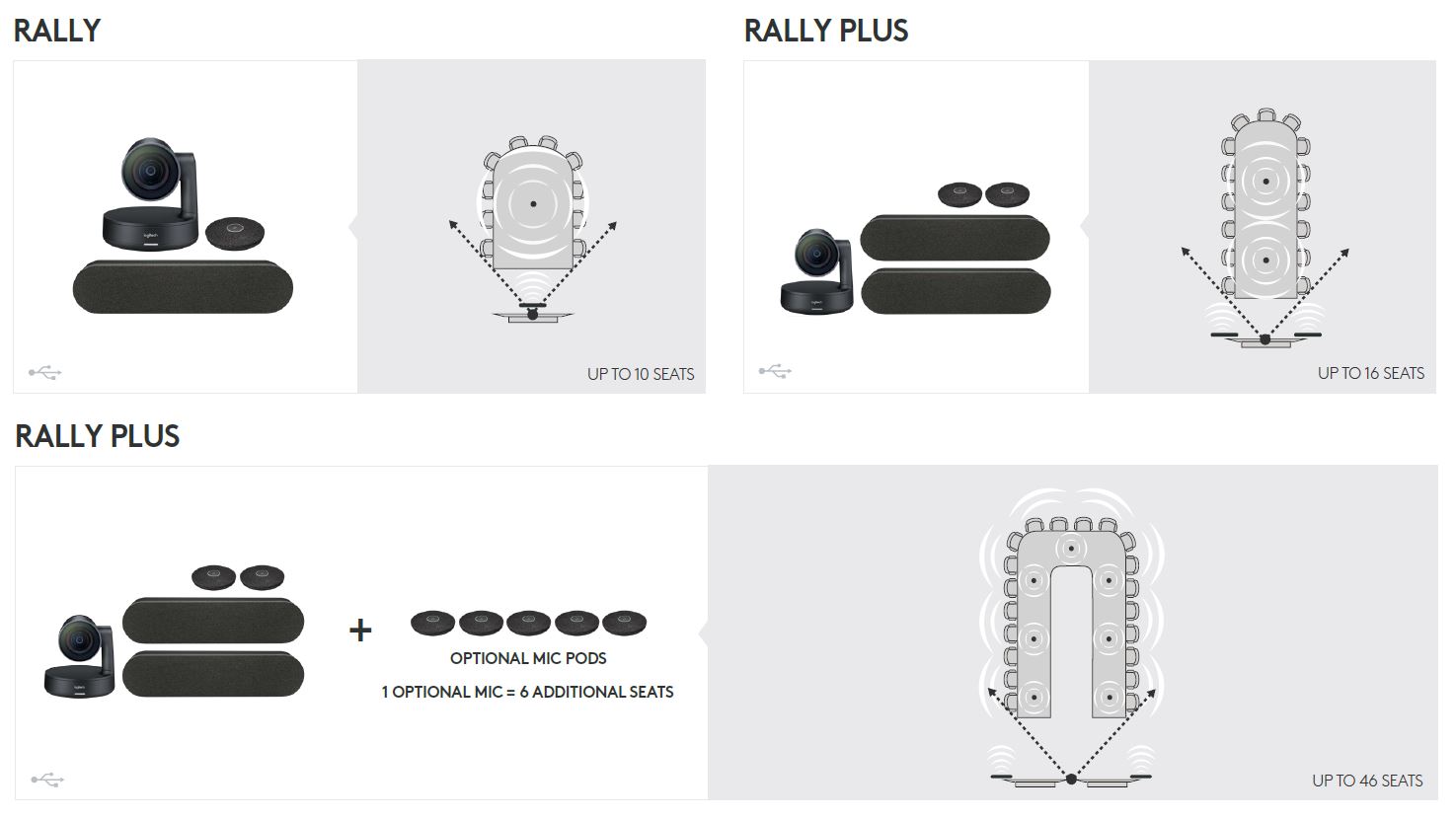

UP TO 7 MIC PODS
For rooms with more than 10 participants, add Rally Mic Pods to expand audio coverage and provide convenient access to mute controls. Each pod adds coverage for six more participants, so you can deploy Rally in large meeting spaces and boardrooms with up to 46 people.
FLEXIBLE MIC POD CABLING
A more flexible alternative to daisy-chain connections, Rally Mic Pod Hub makes it easy to run cables beneath the table with three connections for Rally Mic Pods or additional Mic Pod Hubs. With a single-cable connection, participants can reposition individual mic pods to make space on the table or to bring mute control within easy reach.
Logitech Rally (960-001218)

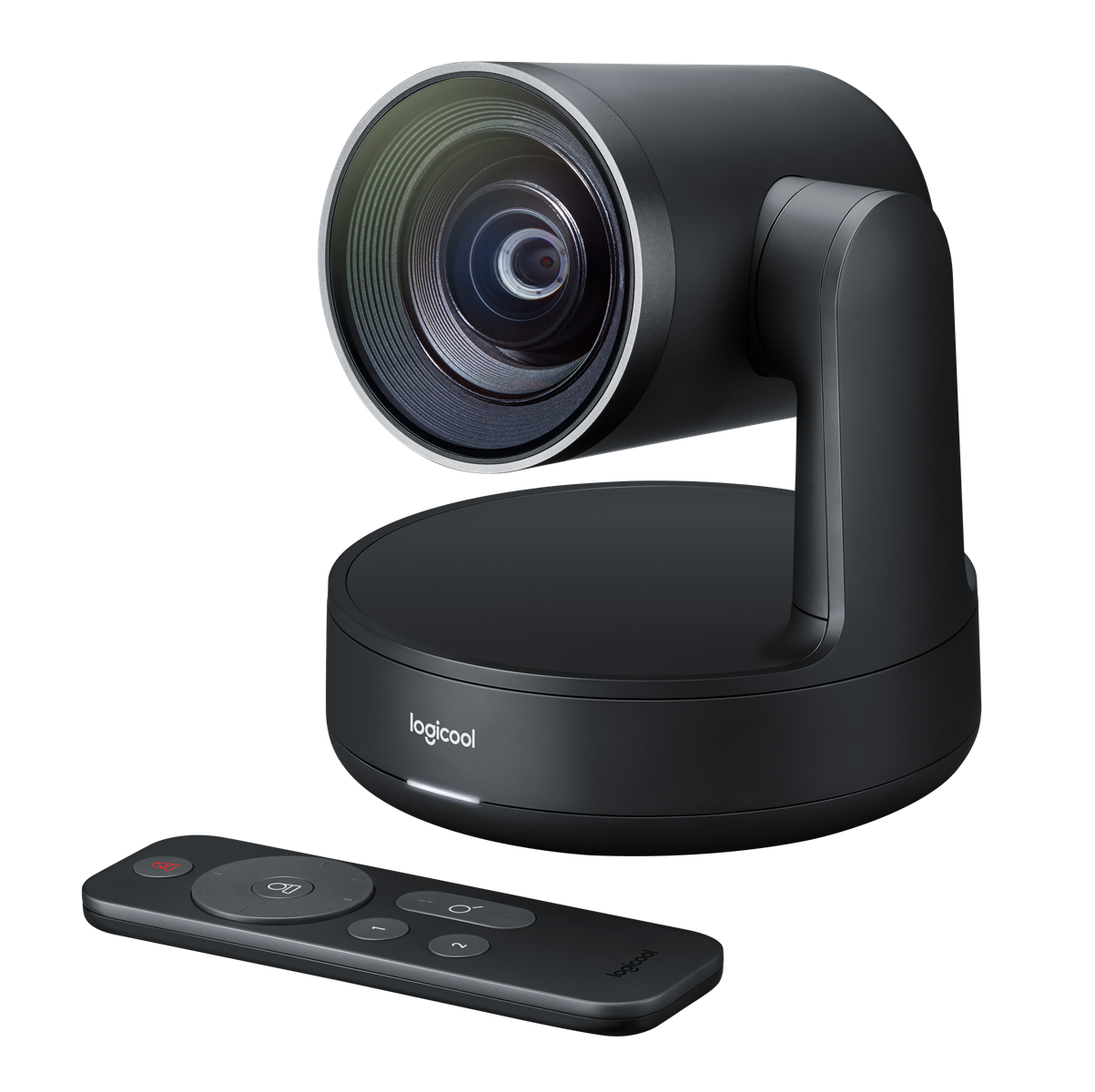

Rally Camera
Rally Display Hub
Rally Table Hub
Rally Speaker (x1)
Rally Mic Pod (x1)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power Supplies (x2)
Documentation

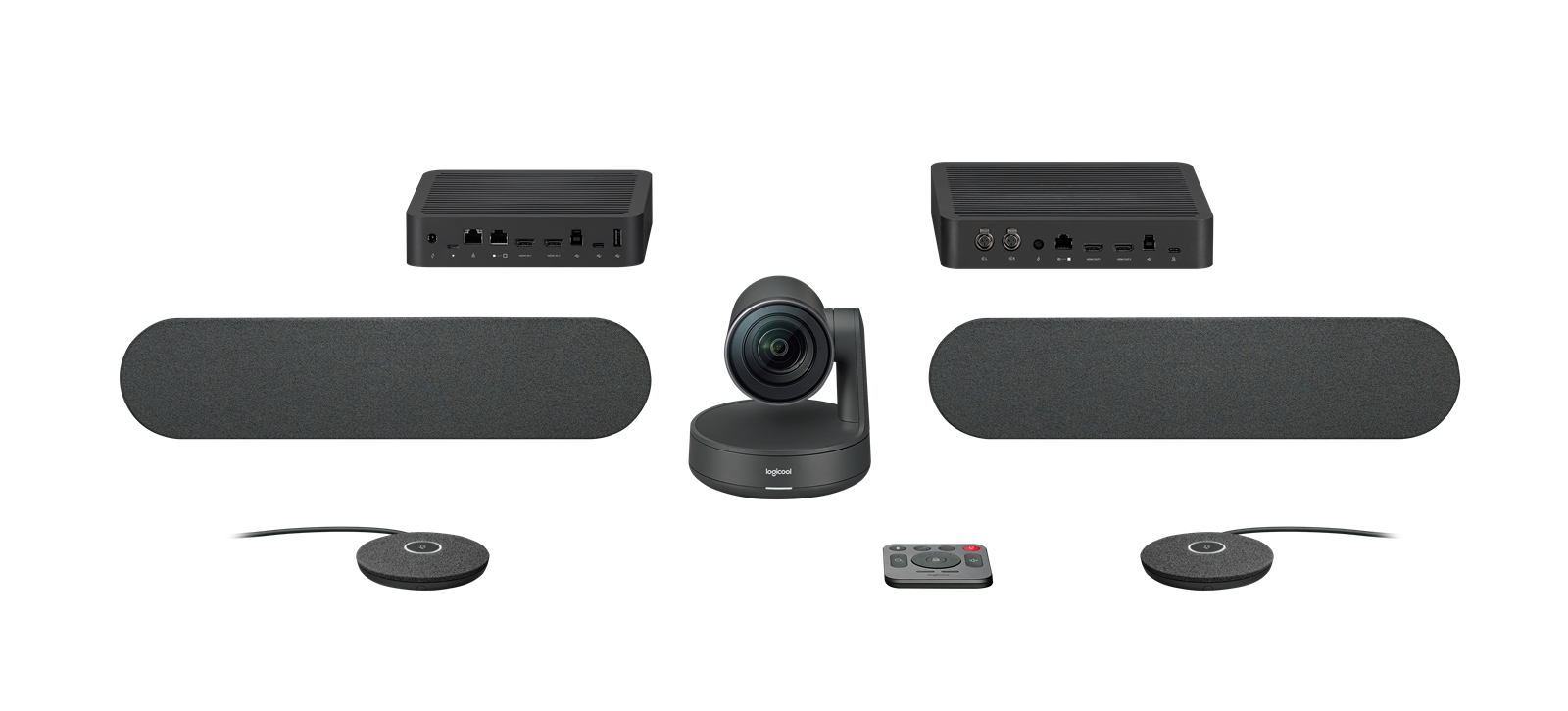

Logitech Rally Plus (960-001224)
Rally Camera
Rally Display Hub
Rally Table Hub
Rally Speaker (x2)
Rally Mic Pod (x2)
Remote control
USB Type C to USB Type C
USB Type A to USB Type B
CAT6A Ethernet cable
HDMI Type A (x2)
A/C cables (x2)
Power Supplies (x2)
Documentation
Allmänt
- Applikation/Certifiering
- Google Meet, USB BYOD, Zoom
- Rumsstorlek
- 8p+ Stora rum
Kamera
- Kameratyp
- PTZ kamera
- Upplösning
- 3840 x 2160
- Framerate
- 30 FPS
- Optisk zoom
- 5 x
- Digital zoom
- 3 x
- Synfält (horisontellt)
- 82 °
- Pan-rörelse +/-
- 90 °
- Tiltrörelse ner
- 90 °
- Tilt rörelse upp
- 50 °
- Programmerbara positioner
- Ja x3
- Auto framing/tracking
- Ja RightSight Auto Framing (additional software)
Ljudspecifikation
- Inbyggd mikrofon
- Nej
- Extern mikrofon
- Ja 2x Micpods with 4x omnidirectional mics forming eight acoustic beams (Daisychain up to 7 Rally Mics)
- Räckvidd ljudupptagning
- 4,5 m Per mic pod
- Inbyggd högtalare
- Nej
- Extern högtalare
- Ja 2x Rally Speakers with 3" drivers, 100dB Max SPL/speaker
Anslutningar
- Bildanslutning ut
- HDMI x2 to displays, Passthrough from Tablehub HDMI connections
- Bildanslutning ut
- USB-B To Meeting room computer
- Ljudanslutning in
- Extern mikrofoningång x1 12p connector on Table Hub for connecting Rally Mic Pods
- Ljudanslutning ut
- XLR mini x2 on Display Hub for connecting Rally Speakers
- USB standard
- 3.1 Gen 1
Energi
- Strömförsörjning
- 2x External Power Supplies (one for each Hub)
Mått och vikt
- Bredd
- 152 mm
- Djup
- 152 mm
- Höjd
- 182,5 mm
Övrigt
- Färg
- Svart
- Medföljande Tillbehör
- Camera, Display Hub, Table Hub, Speaker (x2), Mic Pod (x2), Remote, USB Type C-C, USB Type A-B, CAT6A Eth cable, HDMI Type A (x2), A/C cables (x2), Power Supplies (x2), Documentation
- Garanti
- 2 år
Förpackningsinfo
- Förpackningsstorlek
- 733 x 464 x 241 mm
- Förpackningsvikt
- 13,20 kg
- Streckkod
- 50992060795208
