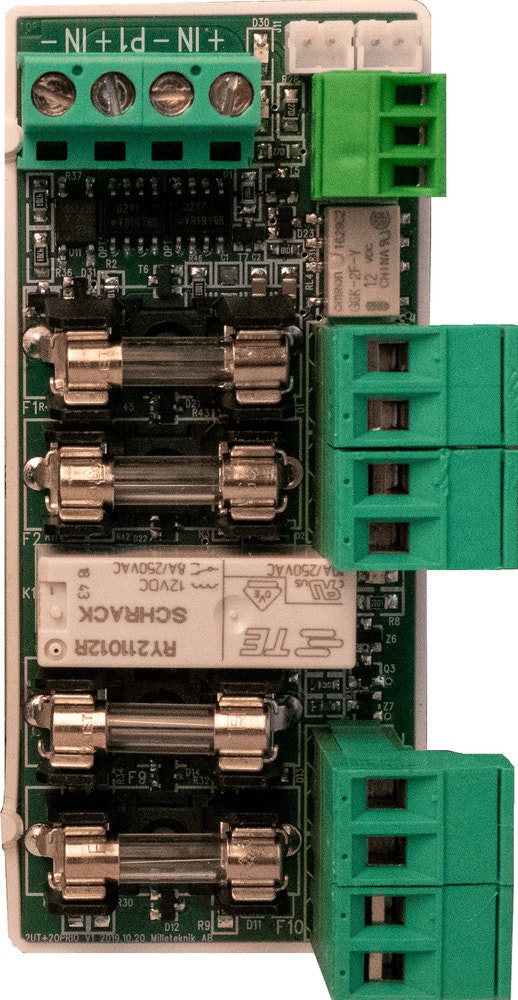

Fuse card 4 outputs. 4 1-pole fused outputs as standard with F2A glass fuses (can be fused up to 10A per output) of which two of them can be controlled to drive non-priority loads such as locks in a security system (NOTE! Only possible for control via the NEO series up to 10A, the NOVA series up to 10A & the DSS series up to 10A).
Max total current = 10A. Alarm for tripped load fuse via alternating alarm relay or on separate input in the NEO, NOVA and DSS series up to 10A. Dual inputs simplify service. Available as an option in the following enclosures; Medium, FLX S, FLX M, & FLX L.
- Form factor
- Rack mount 19 rack module holder, FLX L, FLX M
Størrelse & Vekt
- Width
- 40 mm
- Dypde
- 89 mm
- Høyde
- 30 mm
- Net weight
- 0,2 kg
Ytterligere informasjon
- Warranty
- 2 år
