MA/PA Series
With quick, easy setup and intuitive operation, the compact MA and PA series power amplifiers make it easier than ever to bring your commercial space to life. The MA2030a and PA2030a are ideal audio solutions for retail stores, eateries, classrooms or public facilities like hospitals. The MA2120 and PA2120 meet the demands of a wide range of applications requiring higher power as well as more flexible DSP functionality and zone control. All models combine approachable, unobtrusive design with efficient, flexible performance. The MA2030a and MA2120 offer mixing capability with source EQ (Bass/Treble) control, as well as some of the same state-of-the-art DSP technol-ogies that are acclaimed features of professional Yamaha audio gear. Whether providing background music for a café or restaurant or powering a conference room or other application requiring microphone input, the MA/PA series amplifiers are simple yet powerful tools that can help establish an ideal commercial sound environment. - Simple, user-friendly interface - Stereo and microphone inputs (MA series) - DSP functions optimized for background music (MA series) - Switchable for low (3/4/8 Ω) and high (70/100 V) impedance speaker systems - Stereo source EQ with enhancer function (MA series) - EQ for optimum performance with Yamaha VXC/VXS series speakers built in - Easy service zone expansion with PA series amplifiers (PA2030a excluded) - Optional DCP control panels allow convenient remote volume control, microphone ON/OFF switching and chime activation (PA2030a excluded) - Industry leading Yamaha quality control and reliability - Compact, space-saving design* * All models are naturally cooled designs that require sufficient surrounding space for airflow.

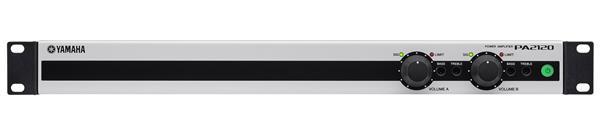

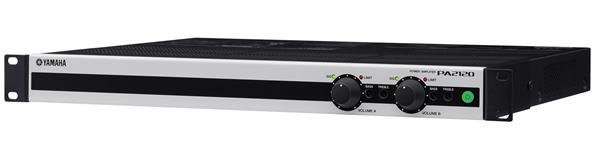

PA2120
Lo-Z/Hi-Z switchable Class-D amplifier (Lo-Z: 120W x2 @4Ω, 100W x2ch @3Ω/8Ω, Hi-Z: 120W x2ch or 200W x1ch, 70V/100V) equipped with 1 stereo/2 mono line inputs; can be combined with the MA2120 mixer amplifier.
Key Features:
- Easy setup, and a user-friendly interface for effortless operation
- Supporting Lo-Z (120W x2ch @4Ω or 100W x2ch @3Ω/8Ω) and Hi-Z (120W x2ch or 200W x1ch, 70V/100V) speaker systems
- 1 stereo/2 mono line inputs
- Output EQ for optimizing the sound of each Output channel
- Built-in speaker EQ optimum for Yamaha VXC/VXS series speakers, as well as HPF and selectable LPF settings
- Capable of controlling sources and volumes seperately in two areas (Source/volume zoning)
- Service areas or zoning areas can be expanded by adding a PA2120
- Remote volume control and microphone on/off switching via optional DCP control panels (DCP4V4S, DCP1V4S, DCP4S, max 2 units)
- Intelligent protection function ensures safe, reliable operation
- Certified by ENERGY STAR
- Certified as Yamaha Eco Products
- Space-saving 1U rack size (*sufficient space must be provided above and below the unit for airflow and cooling.)
Allmänt
- Produktserie
- PA
- Förstärkartyp
- Installationsförstärkare
Ljudspecifikation
- Förstärkarkanaler
- 2
- 100V High-Z
- Ja
- Effekt/kanal (4 Ohm)
- 120 W x2 (4 Ohm), 100W x2 (8 Ohm)
- Effekt/kanal (70/100V)
- 120 W x2 (70/100V), 200W x1 bridged
- Distortion THD
- 0,2 %
- Frekvensomfång min
- 50 Hz 1-8 Ohm / 90Hz 70/100V
- Frekvensomfång max
- 20 000 Hz
- Inbyggd DSP
- Nej only LP/HP filter

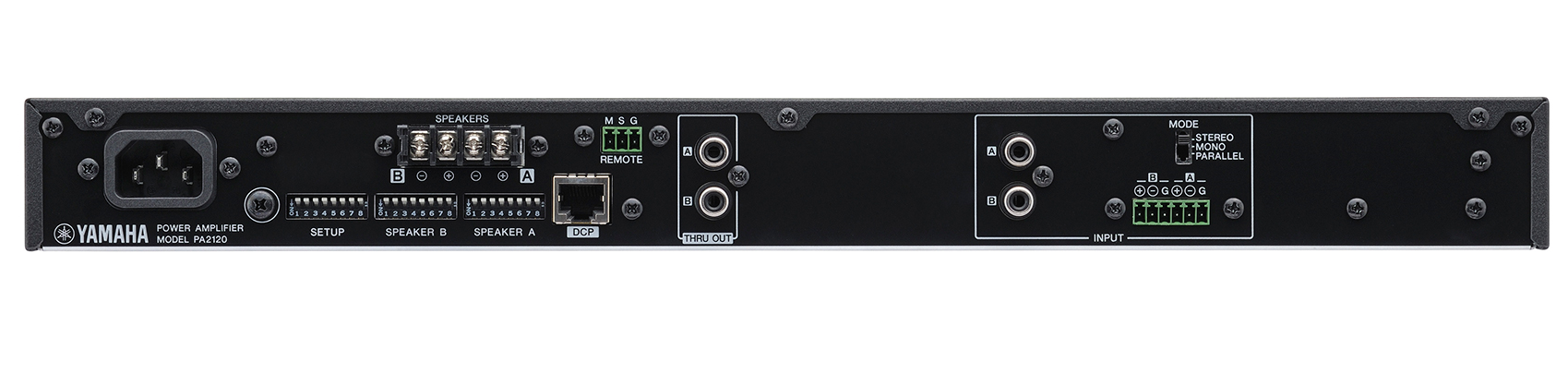

Anslutningar
- Ljudanslutning in
- Euroblock lågnivå x2, 3-pin Balanced (in parallell with RCA inputs)
- Ljudanslutning in
- RCA x2, Unbalanced
- Ljudanslutning ut
- RCA x2, Unbalanced Thru out
- Ljudanslutning ut
- Skruvterminal högt. kabel
- Bluetooth
- Nej
- Wi-Fi
- Nej
- Styrning
- Frontpanel
- Styrning
- Vägg Styrpanel Yamaha DCP Controllers
Energi
- Strömförsörjning
- 100V, 120V, 230V - 240V, 50Hz / 60Hz
- Förstärkarklass
- Class D
- Typ av kylning
- Luft passiv (fläktfri)
- Förbrukning max
- 60 W 60W (1/8 max power, 4Ω, AC100V, pink noise at all channels)
- Auto Standby funktion
- Ja
Mått och vikt
- Bredd
- 480 mm
- Djup
- 379 mm
- Höjd
- 45 mm
- Nettovikt
- 4,8 kg
Övrigt
- Montering
- 19" Rack, 1U
- Medföljande Tillbehör
- AC power cable, 3.5mm Euroblock plug (6-pin) x 3, Euroblock pulg (3-pin) x 1, Owner's manual, Setup guide
- Garanti
- 2 år
Förpackningsinfo
- Förpackningsstorlek
- 570 x 500 x 150 mm
- Förpackningsvikt
- 6,31 kg
