Features
- WUXGA 1200p resolution1200p with HDCP1.4 support and H.265 / 264 encoding
- Point to point (100m), switcher, splitter, distributed matrix and video wall up to 9x9
- Intuitive front panel control, TCP/IP, Web GUI, or full network Controller (PT-IP-CNTRL10)
- Stereo audio embedding and extracting and RS232 with passthrough.
- Flexible powering either via PoE or local power port (12V 1A)

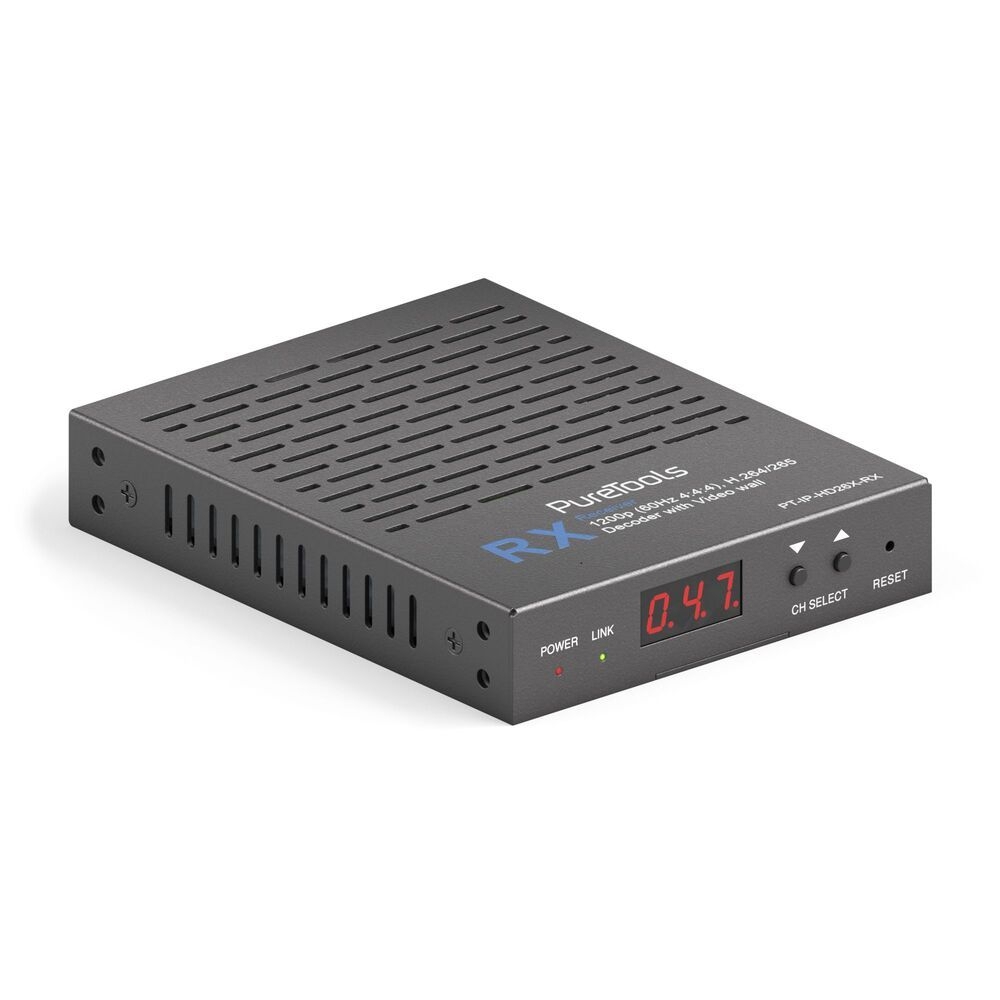

HDMI IP Receiver: High-Quality Video Streaming Made Easy
The most cost effective and user friendly IP system on the market. From point to point to video wall, the PureTools HDMI IP system is perfect when the budget is tight but requirement is feature heavy. End user control is as intuitive as it gets; simply set the right channel on the RX and TX and the job is done! While professional users can take full network control via the control box or GUI.
- WUXGA 1200p Resolution: Perfect video quality for small scale digital signage at WUXGA 1200p resolution, HDCP1.4 support, as well as H.265/264 encoding.
- Scalable Matrix Signal Distribution: Easily switch between multiple sources and distribute signals up to 200m (100m PtoP, doubled when using a switch in between), with support for distributed matrix and video wall configurations up to 9x9.
- Intuitive Control Options: "Any-User" control via the front panel buttons and display and professional control via TCP/IP commands, Web GUI, or the Controller Box (PT-IP-CNTRL10).
- Audio Flexibility: Embed and extract stereo audio with ease, and utilize RS232 with passthrough for seamless integration with other devices.
- Powering Options: Choose between PoE or local power port (12V 1A) for flexible powering solutions to suit your setup.
Allmänt
- Extender typ
- Mottagare (Rx)
- Teknologi
- H.264, H.265
Bildspecifikation
- Max stödd upplösning
- 1920x1200 4.95Gbps
- Uppdateringsfrekvens
- 60 Hz
- Chroma subsampling (4K)
- 4:4:4
- Video operation modes
- Videovägg/Tileing up to 9x9
Anslutningar
- Bildanslutning in
- IP stream (RJ-45)
- Bildanslutning ut
- HDMI x1 HDMI 1.3 with HDCP 1.4 support
- Ljudanslutning ut
- Euroblock lågnivå
- Styrning
- Ethernet/IP (RJ-45), Frontpanel, RS-232, Web interface
Kommunikation
- Switch Data Rate
- 1GbE
- Krav Nätverksswitch
- Layer 3/managed, support multicast, support IGMP snooping, support filter/drop unregistered Multicast traffic
Energi
- Strömförsörjning
- PoE (802.3af Class 3, PD mode) or (included) local power supply (12V 1A)
Mått och vikt
- Bredd
- 120 mm
- Djup
- 95 mm
- Höjd
- 22 mm
- Nettovikt
- 74 g
Övrigt
- Montering
- Fristående/Hylla
- Medföljande Tillbehör
- 1 x 1GbE Decoder, 2x 3-pin Phoenix Connectors (3.81mm, male), 4x Machine Screws (4mm M3), 2x Mounting Ears, 1x 12V/1A Locking Power Adapter, 1x User Manual
Förpackningsinfo
- Förpackningsstorlek
- 120 x 95 x 22 mm
- Förpackningsvikt
- 458 g
- Streckkod
- 4251364736180
